Triple-Band GNSS Patch Antenna GNSSL125182530S

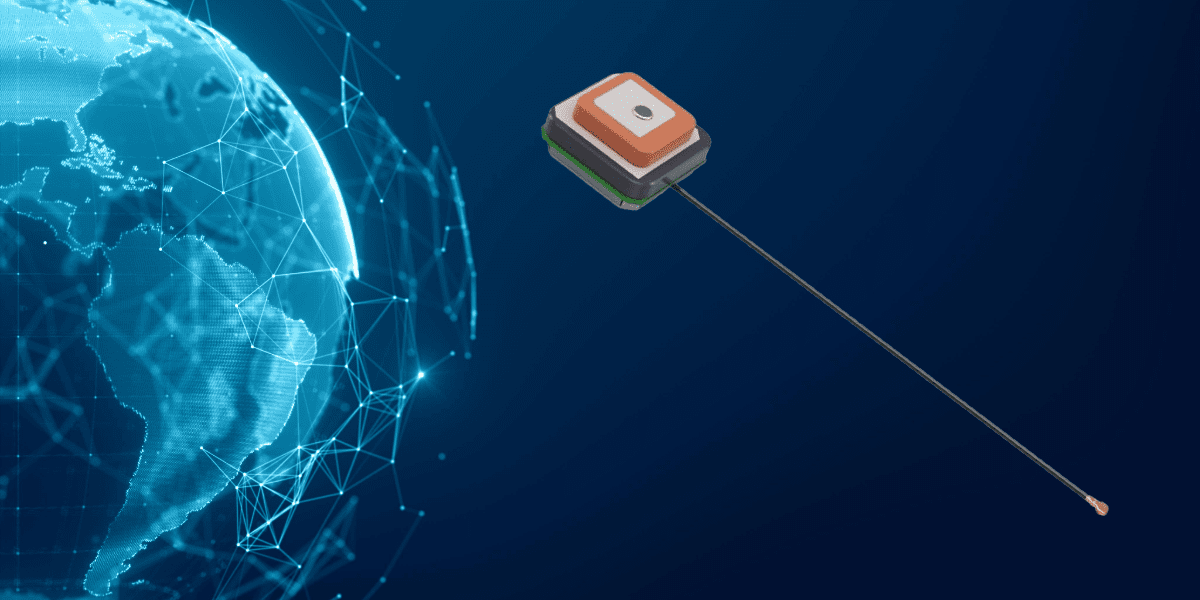

GNSSL125182530S Compact Tri-Band GNSS Active Patch Antenna
The GNSSL125182530S active GNSS internal antenna from YAGEO Group is a compact, high-performance solution designed for space-constrained devices requiring tri-band L1/L2/L5 GNSS support. Featuring a stacked ceramic patch architecture and integrated 30 dB low-noise amplifier, this antenna delivers reliable multi-band performance while minimizing PCB footprint. Strong internal filtering and high out-of-band rejection help improve RF coexistence with nearby LTE, 5G, and Wi-Fi radios, supporting stable operation in dense RF environments.
Engineered for reliable embedded operation, the GNSSL125182530S includes internal ESD protection, an integrated LDO regulator, and a wide operating voltage range of 2.5 to 18 VDC with a maximum current consumption of 16 mA. Its 25 × 25 mm footprint offers a meaningful size reduction compared to traditional tri-band GNSS patch antennas, making it well suited for compact tracking, navigation, and industrial positioning platforms without compromising GNSS performance.
Features
- L1 / L2 / L5 tri-band GNSS support
- Integrated 30 dB low-noise amplifier
- Strong internal filtering for RF coexistence
- Wide operating voltage range: 2.5–18 VDC
- Internal LDO regulation and ESD protection
- Stacked ceramic patch architecture
- 25 × 25 mm compact footprint
- 100 mm Ø1.13 mm coax cable
- I-PEX MHF connector
- Customizable cable length and connector options
Applications
- Multiband satellite navigation receivers
- L1, L2, and L5 GNSS devices
- Asset tracking and logistics systems
- Fleet management and telematics
- Surveying and mapping equipment
- Precision agriculture, mining, and construction
- Industrial and embedded GNSS platforms
Quick Facts
- Tri-band GNSS: L1 (1561–1602 MHz), L2 (1215–1237 MHz), L5 (1164–1189 MHz)
- Compact footprint: 25 × 25 mm stacked ceramic patch
- Wide operating voltage: 2.5–18 VDC
Features
- Stacked L1 / L2 / L5 ceramic patch design enabling tri-band GNSS operation
- Internal LDO voltage regulation for stable operation across wide input voltages
- Integrated 30 dB LNA
- Low noise figure:
- ~1.7 dB @ L1
- ~2.2 dB @ L2 / L5
Customer Value
- Saves PCB area compared to larger 30 × 30 mm tri-band GNSS patch solutions
- Simplifies system design with integrated LNA, LDO, and DC-bias feed
- Supports global deployment across GPS, GLONASS, Galileo, BeiDou, and IRNSS
- Strong internal filtering supports improved RF coexistence with cellular and Wi-Fi radios
- Shorten development cycles using a proven, fully integrated GNSS antenna module
Target Applications
- High-precision asset tracking and logistics devices
- Fleet management and telematics platforms
- Surveying, mapping, and positioning systems
- Precision agriculture, mining, and construction equipment
- Compact GNSS-enabled consumer and industrial electronics
- Geofencing and location-based services
Market Advantages
- Smaller footprint than typical tri-band GNSS patches, ideal for dense PCB layouts
- Tri-band L1/L2/L5 capability aligns with high-precision and emerging GNSS requirements
- Integrated 30 dB gain stage eliminates the need for external LNAs
- Wide voltage tolerance (2.5–18 V) supports diverse GNSS chipsets and power rails
- Consistent RHCP radiation patterns across all three GNSS bands
- Designed for interference-heavy environments such as asset trackers and gateways
