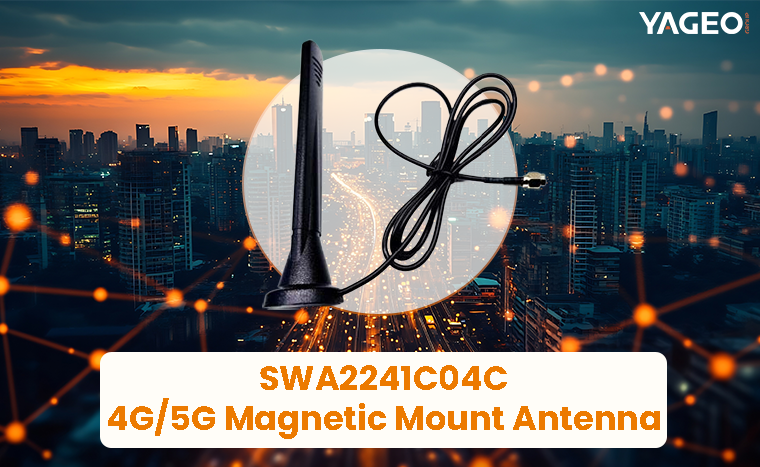

SWA2241C04 – 4G/5G Magnetic Mount Antenna for IoT and Fixed Wireless
The SWA2241C04 from YAGEO Group’s Pulse Electronics is a compact, wideband whip antenna designed for 4G LTE, 5G FR1, and 3G fallback. It supports critical cellular bands, including Band 71 (617 to 698 MHz), enabling reliable connectivity across diverse applications.
Its magnetic mount allows for quick, secure installation without drilling or modifying the mounting enclosure. This is ideal for applications requiring flexible or non-permanent placement. With an IP66-rated housing, the SWA2241C04 is built for both indoor and outdoor industrial use.
Features and Benefits
- Wideband coverage from 617 to 960 MHz, 1710 to 2700 MHz, and 3300 to 3700 MHz for LTE and 5G FR1
- Band 71 support enables extended LTE coverage for rural and hard-to-reach areas
- Magnetic mount allows secure, tool-free installation without altering the radio enclosure
- Omnidirectional radiation pattern ensures consistent signal performance
- IP66-rated ABS housing for use in harsh or outdoor environments
- Customizable cable length and connector options support a range of system requirements
- Compact design measuring 35.5 mm in diameter and 155.8 mm in height for easy integration
Applications
| · Remote Monitoring
· Industrial IoT (IIoT) · IoT Devices and Gateways · Remote POS and Payment Terminals · Digital Signage and Kiosks |
· Smart Grid and Utility Networks
· Public Safety and FirstNet · 5G Fixed Wireless Access · EV Charging Infrastructure · Security and Access Control Systems |
With its compact form factor, flexible mounting, and reliable cellular performance, the SWA2241C04 is an ideal antenna solution for today’s connected infrastructure.
