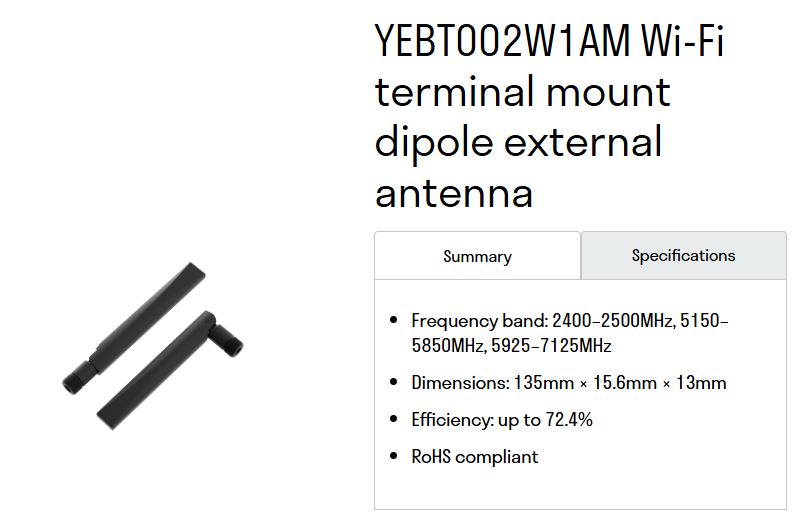

YEBT002W1AM Wi-Fi terminal mount dipole external antenna

• Frequency band: 2400–2500MHz, 5150–5850MHz, 5925–7125MHz
• Dimensions: 135mm × 15.6mm × 13mm
• Efficiency: up to 72.4%
• RoHS compliant

YEBT002W1AM is a Wi-Fi external antenna measuring 135mm × 15.6mm × 13mm. This ultra-wide-band Wi-Fi antenna provides broad coverage from 2400–2500MHz, 5150–5850MHz and 5925–7125MHz. The antenna is terminated with RP SMA male connectors, and also supports N male, TNC male, Fakra male connectors. Ideal for applications where the antenna is required to be discreet, this low profile, terminal mount omni-directional antenna is easy to install with maximum durability assured thanks to its PC+ABS enclosure. It is compatible with Quectel’s Wi-Fi modules.

This antenna is designed as a dipole type to work with various GND plane sizes or in free space for ease of integration with a hinged RP SMA male connector to achieve the optimum position. The hinged structure helps to avoid other antennas or objects by rotating to different directions when mounted on terminals. This omni-directional antenna is ideally suited for Wi-Fi, WLAN, Zigbee, Bluetooth, and 802.11a/b/g/n/ac applications, Wi-Fi application points and routers, offering great performance with its high gain and efficiency.

Key features

• Optimized for Wi-Fi networks
• Terminal mount, dipole antenna
• RP SMA male connector
• Range of alternative connector types available
