QuecPython BG95 & EG91xU series C4-P02 EVB kit
Quectel supplies the QuecPython Ex800x-XX series core EVB kit to help engineers develop products based on the Ex800-XX series modules.
Applicable modules:
- LPWA BG95 series
- LTE EG915U series
- LTE EG912U-GL
Key features
- 4G FPC antenna
- GNSS and LTE RF connectors
- Power supply interfaces
- UART interfaces
The “Single-row pin interface” core board is the core board controlled by the Quectel EC800x series module. The supported module models are: EC800K, EC800M, EC800Z, EC800E, etc.
Function Introduction
- Single-row pin interface
- Serial port
- USB port
- On-board DCDC (wide voltage supply 5-16V)
- Serial port level conversion
- Battery power supply interface
- Nano SIM card connector

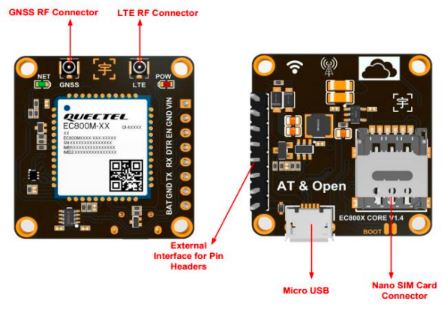

The main components and interface layout of the development board are shown in the following figure.
- The module supports Wi-Fi Scan function. Due to the common main antenna interface, the two functions cannot be used at the same time, time division multiplexing, Wi-Fi Scan only receives and does not transmit
- GNSS: The GNSS function depends on the module model. Taking EC800MCNGA as an example, the core board defaults to using active antennas.
