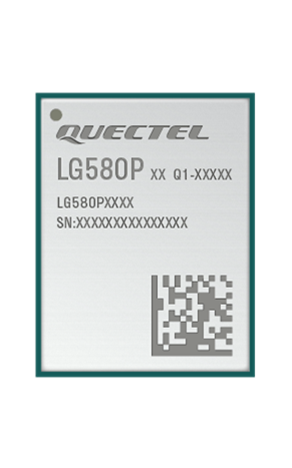

LG580P (03) is a multi-band, multi-constellation GNSS module with 1040 tracking channels, which supports concurrent reception of GPS, GLONASS, Galileo, BDS, QZSS and NavIC constellations, as well as multiple SBAS systems (WASS, EGNOS, BDSBAS, MSAS, GAGAN and SDCM).

The built-in professional-grade interference signal detection and elimination algorithms effectively mitigate multiple narrow-band interferences, which significantly improves signal reception performance, particularly in complex electromagnetic environments. In addition, LG580P (03) supports L1, L2, L5 and L6^* multi-band RTK + Heading algorithm solution, significantly improves the module’s robustness in complex scenarios such as urban environments and deep tree cover, supporting the output of high-precision positioning and heading result.

LG580P (03) supports protection-level and other integrity detection information, aiding control decisions in automatic navigation application scenarios. With on-chip storage ECC verification and secure boot safe loading mode, the module protects the operating firmware safety. LG580P (03) accommodates users diverse needs with a choice of interfaces including UART, SPI^* , I2C^*, and CAN^*.

With high precision, low power consumption and a high positioning and heading update rate up to 20Hz, LG580P (03) is an ideal choice for high precision navigation applications, such as intelligent robots, UAVs, precision agriculture, ADAS, and autonomous driving.
