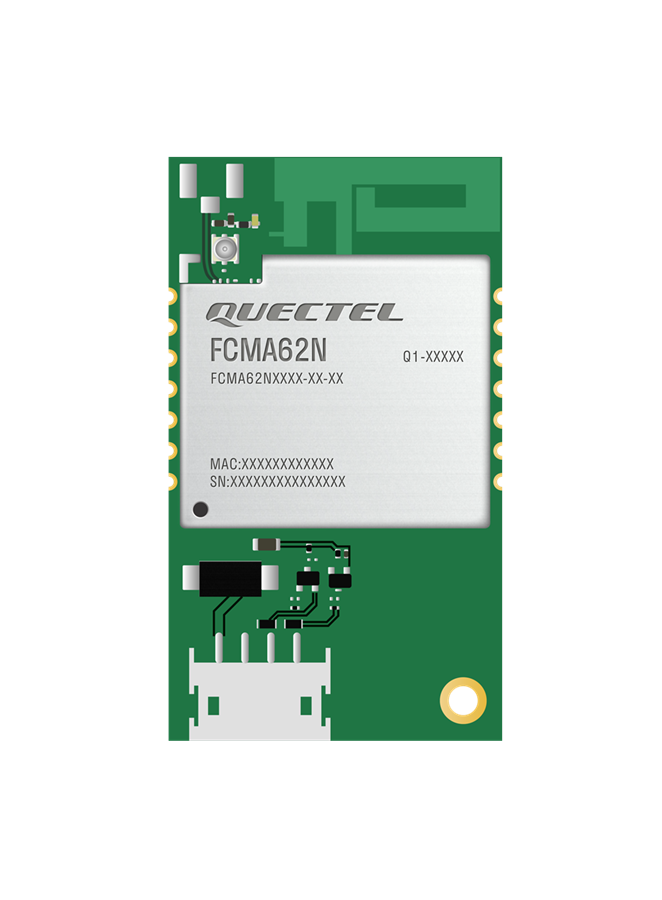

Wi-Fi & Bluetooth FCMA62N

• MCU Wi-Fi 6 and Bluetooth 5.3 module
• LCC form factor
• 38.3mm × 21.6mm × 4.75mm
• 3.6g
• Operating temperature range: -40°C to +85°C

FCMA62N is a cutting-edge MCU Wi-Fi and Bluetooth module launched by Quectel. It boasts a high-performance processor (ARM Cortex-M33) with a frequency of up to 260 MHz and supports IEEE 802.11a/b/g/n/ac/ax protocol and BLE 5.3. The module features built-in 1.2 MB SRAM and 8 MB flash, ensuring efficient performance. In addition, it complies with WPA-PSK, WPA2-PSK, and WPA3-SAE security standards, providing an AES-128 encryption algorithm.

FCMA62N is in a LCC form factor with an ultra-compact package size of 38.3 mm × 21.6 mm × 4.75 mm, which optimizes the size and cost for end-products and is compatible with diverse designs.

FCMA62N supports UART, SWD and GPIO interfaces by default and supports SPI, I2C, I2S and PWM interfaces in QuecOpen® solution and many low power consumption modes and keep-alive mechanism, which provide flexibility and versatility for a range of applications, especially in smart homes and industrial IoT scenarios.

FCMA62N supports the QuecOpen® solution and standard AT commands, with a compact protocol, and can realize efficient product development for customers.

Key features

• Wi-Fi 6 module, 2.4 GHz and 5 GHz Wi-Fi bands, 1×1 antenna
• Bluetooth Low Energy (BLE) 5.3
• Large memory, 1.2MB SRAM and 8MB Flash
• Supports up to 12 GPIOs for SPI, I2C, I2S and PWM interfaces in QuecOpen® solution
• RF coaxial connector, PCB antenna (optional)
