Miniaturized Step-Up Power Supply in Package 100 mA Synchronous Boost Converter
Boost Switching Regulator IC Positive Adjustable 1.4V 1 Output 100mA 6-WFDFN Exposed Pad
Contact FMG for more information
Each price quantity has minimum unit price. Prices reflect on how many units you purchase. Unit prices are divided up into 5 different price quantities. The more quantities you purchase the lower the price unit will cost you. Choose how many you want to purchase and when you add to cart your price will be calculated. To view your bulk price please go to the checkout or cart page.
Description

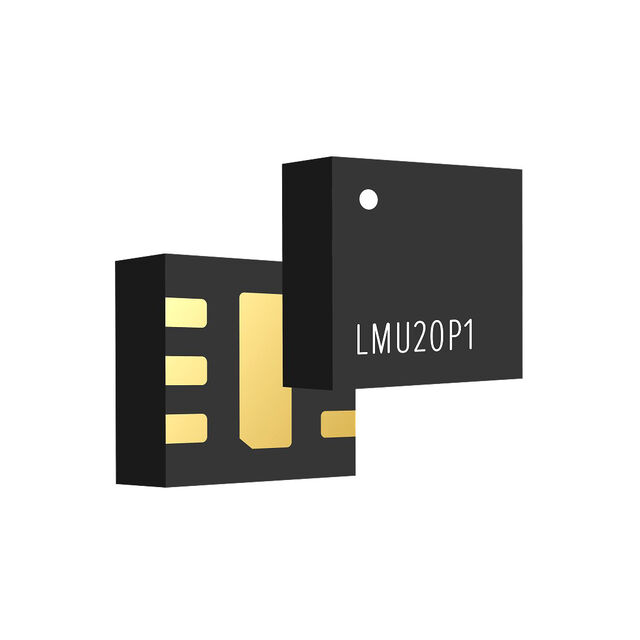

The LMU20P1 is a miniaturized step-up Power Supply in Package (PSiP) offering small size and high efficiency. The PSiP includes an integrated circuit and an inductor in a compact 6-pin LGA package, with dimensions of 2 mm x 2 mm x 0.75 mm (compatible with the DFN package footprints).
The package is optimized for automated assembly by standard surface-mount pick-and-place equipment.
The LMU20P1 has a light-load efficiency enhancement function to achieve high efficiency across a wide load range, and features a range of protection circuits that include soft start, over-temperature protection, short-circuit protection and cycle-by-cycle current limit.
The LMU20P1 offers exceptionally low near-field radiation levels and a proprietary start-up circuit to minimize input inrush current.
Features
- 0.5 V–1.6 V input voltage range
- 1.4 V–1.8 V output voltage range
- 100 mAload continuous operation
- Best in class efficiency
- PFMlight load mode
- 2mmx2mm6-pinLGApackage
- 0.75 mmmaximum profile
- Integrated inductor
- 5MHzswitching frequency (PWM)
- Internal loop compensation
- Soft-Start, OTP, SCP, cycle-by-cycle current limit
- RoHScompliant
Applications
- Hearing aids
- IoT sensors
- Wearable devices
- Single- and double-cell PV powered applications
|
Type
|
Description
|
|
|---|---|---|
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators – DC DC Switching Regulators
|
|
|
Mfr
|
Lotus Microsystems
|
|
|
Series
|
LMU
|
|
|
Packaging
|
Tape & Reel (TR)
|
|
|
Part Status
|
Active
|
|
|
Function
|
Step-Up
|
|
|
Output Configuration
|
Positive
|
|
|
Topology
|
Boost
|
|
|
Output Type
|
Adjustable
|
|
|
Number of Outputs
|
1
|
|
|
Voltage – Input (Min)
|
0.5V
|
|
|
Voltage – Input (Max)
|
1.5V
|
|
|
Voltage – Output (Min/Fixed)
|
1.4V
|
|
|
Voltage – Output (Max)
|
1.8V
|
|
|
Current – Output
|
100mA
|
|
|
Frequency – Switching
|
5MHz
|
|
|
Synchronous Rectifier
|
Yes
|
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
6-WFDFN Exposed Pad
|
|
|
Supplier Device Package
|
6-DFN (2×2)
|
|
