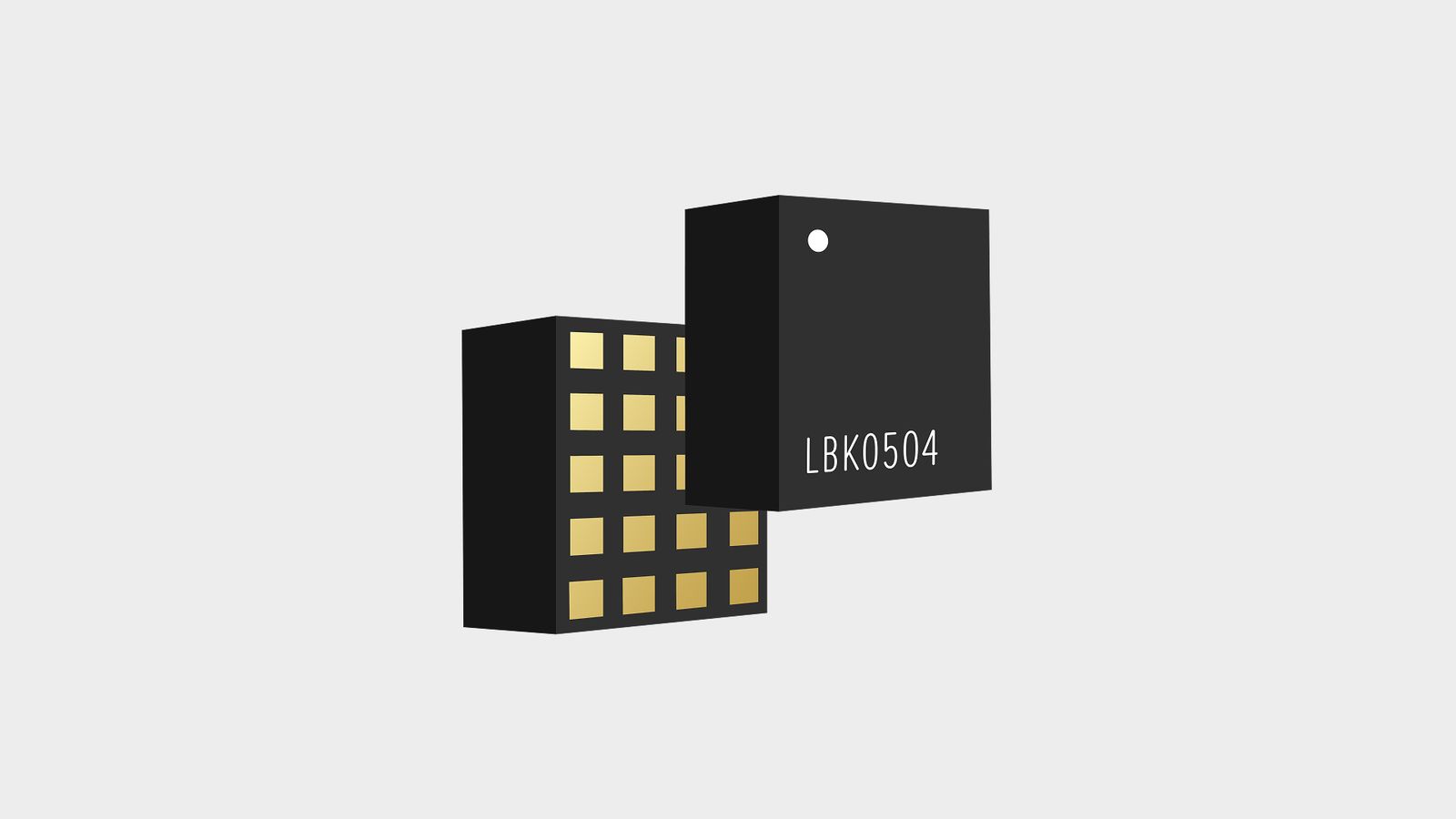

The LBK0504 is a miniaturized step-down converter featuring small size and high efficiency. The power module integrates the power management integrated circuit (PMIC) and the inductor in a compact 2.0 mm x 2.5 mm x 1.1 mm package. The package is optimized for automated assembly by standard surface-mount pick-and-place equipment.
The LBK0504 also features an I2C interface which can be used to configure the protection circuits, soft-start circuit, I2C address, and timeout. The protection circuits include input under-voltage lockout (UVLO), over-temperature protection (OTP), output over-voltage and under-voltage protection (OVP and UVP), and cycle-by-cycle current limit.
The device can be used in parallel to multiply the output current (up to 4 phases in parallel). The LBK0504 features ultra low-noise performance, making it a primary candidate for low-noise applications.
Contact Technical FMG or Sales FMG for more information
Price Quantity
Quantity 1 – 24 = €49.00
Each price quantity has minimum unit price. Prices reflect on how many units you purchase. Unit prices are divided up into 5 different price quantities. The more quantities you purchase the lower the price unit will cost you. Choose how many you want to purchase and when you add to cart your price will be calculated. To view your bulk price please go to the checkout or cart page.
Description
The LBK0504 is a miniaturized step-down converter featuring small size and high efficiency.
TheLBK0504 is a miniaturized, high-efficiency 4A step-down DC-DCconverter from 2.3 V to 5.5 V input range. The LBK0504 integrates both a power management integrated circuit (PMIC) and an inductor in to a 2.0mm×2.5mm×1.1mm package compatible with standard automated pick-and place equipment.
The LBK0504 combines a PWM peak-current control synchronous buck architecture with a flexible digital interface. Through I2C, users can program the soft-start, address, and timeout, and monitor protection parameters. These protections include in put under-voltage lockout (UVLO), over-temperature protection (OTP), output over-voltage protection(OVP), output under-voltage protection (UVP), and cycle-by-cycle current limit.
The LBK0504 supports multi-phase parallel operation. Up to four phases can be combined to extend the total output current capability to 16A forscalable power architectures. Delivering ultra-low output ripple and noise performance, the LBK0504 excels in noise-sensitive applications including optical transceivers, point-of load converters in computing, 5G small cells, and medical devices.
FEATURES
- Input voltage range: 2.3Vto5.5V
- Output voltage range: 0.4Vto4.9V1
- 4A continuous output current (DC)
- High accuracy trimmed voltage reference
- Ultra low flicker and thermal noise operation
- Superior thermal performance
- Multi-phasecapability (up to 4 phases)
- Standalone operation supported
- Mode programmability via feed back pin
- External frequency synchronization
- I2C interface for configuration and status monitoring
- Power good notification via general purpose I/O
- Comprehensive protection features:
- Input under-voltage lockout (UVLO)
- Output over-voltage protection(OVP)
- Output under-voltage protection(UVP)
- Over-temperature protection(OTP)
- Short-circuitprotection (SCP) with cycle-by-cycle peak-current limit
- Compact package: 2.0mm×2.5mm×1.1mm
- RoHScompliant
APPLICATIONS
- Optical transceivers and modules
- Computing point-of-load (PoL) converters
- 5G small cells and telecom infrastructure
- Medical instrumentation and devices
- General purpose low-noise step-down conversion
