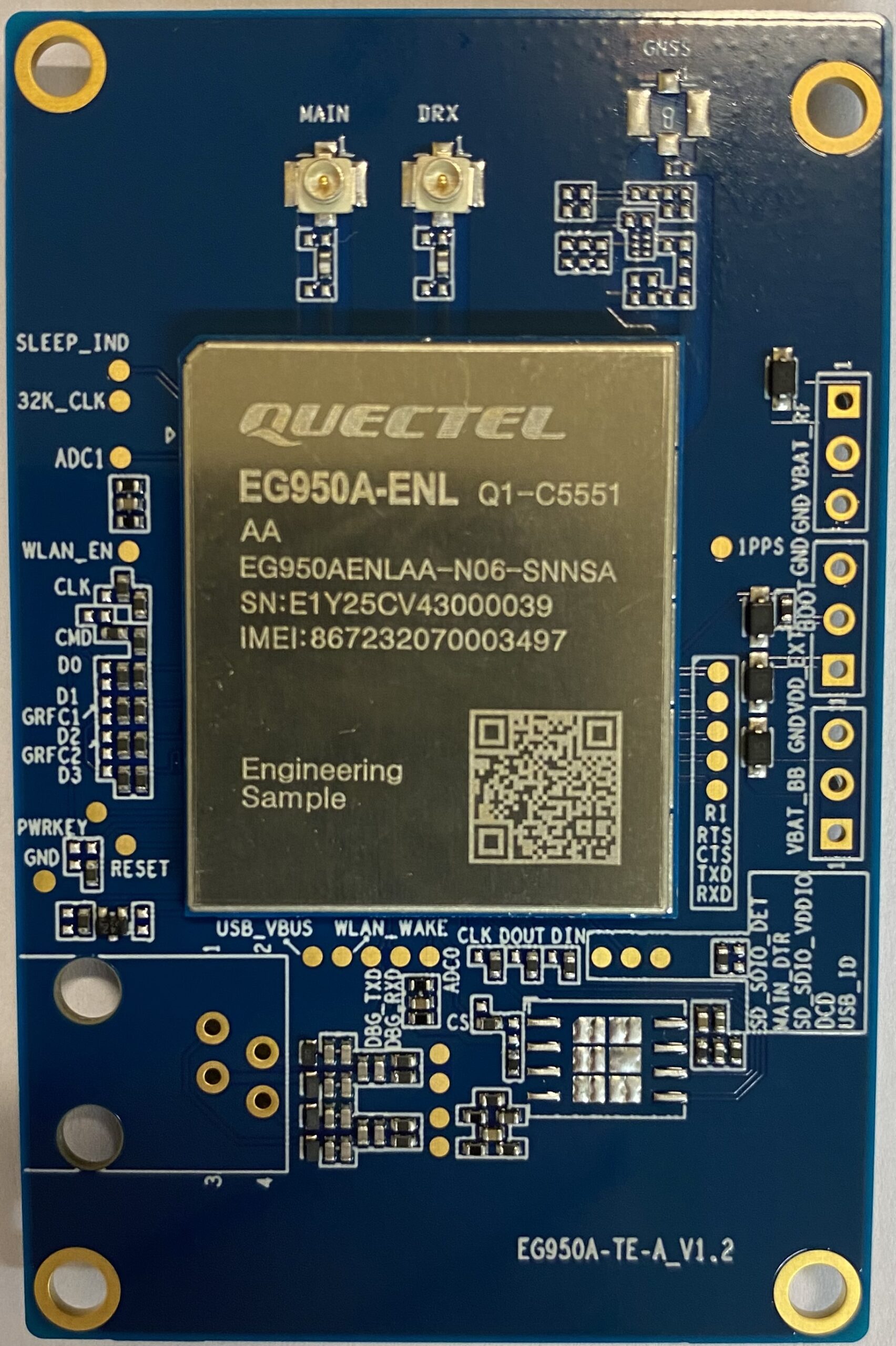

Quectel EG950A-ENL-TE-A Test Evlaution Adpater
EG950AENLAA-N06-TA0AA
Price Quantity
Quantity 1 – 24 = €68.02
Each price quantity has minimum unit price. Prices reflect on how many units you purchase. Unit prices are divided up into 5 different price quantities. The more quantities you purchase the lower the price unit will cost you. Choose how many you want to purchase and when you add to cart your price will be calculated. To view your bulk price please go to the checkout or cart page.
Description
Quectel EG950A-ENL-TE-A Test Evlaution Adpater
- LGA form factor
- Dimensions: 29.0 mm × 25.0 mm × 2.4 mm
- Max. data rate: 150 Mbps DL / 50 Mbps UL
- Operating temperature range: -35°C to +75°C
- Extended temperature range: -40°C to +85°C
Quectel E950A is a series of LTE Cat 4 module optimized specially for LTE 450/410 M2M and IoT applications. Adopting the 3GPP-9 LTE technology, it delivers maximum data rates up to 150Mbps downlink and 50Mbps uplink. EG950A series is compatible with Quectel multi-mode LTE Standrad EG91 series, EG95 series, EG912N-EN, EG950A-EL, EG950A series modules.
EG950A series consists of three models: EG950A-EL, EG950A-LA and EG950A-ENL, covering the frequency band of different countries and regions; EG950A series adopts the laser engraving process to ensure more goodlooking appearance, strong metallic texture, better heat dissipation, durable label information, which makes it more suitable for automation requirements.
A rich set of network protocols, industry-standard interfaces, a variety of drivers and abundant functionalities (USB serial drivers for Windows 8.1/ 10/ 11, Linux, Android and other operating systems) extend the applicability of the module to a wide range of M2M applications, such as IPC, CPE, and gateway.
Key Features
- LTE Cat 4 module optimized for M2M and IoT applications
- Worldwide LTE, UMTS/HSPA+ coverage
- Supports DFOTA
- Supports MIMO
- Super cost effective
- Supports 450 MHz (B31)
- Supports 410 MHz (B87)
- Available in Mini PCIe in Q3 2025
EG950A-ENL Module support 410 Mhz (B87) & 450 Mhz (B31) bands B3, B31 & B87
Quectel’s Eg905A-ENL LTE 450 and 410 Cat 4 module is optimised for IoT and M2M use cases and is particularly well-suited to smarter meter deployments thanks to low power consumption, highly appealing cost effciency and maximum data rates of 150Mbps downlink and 50Mbps uplink. Specific frequency bands make it suitable to be used in private LTE networks for metering and mission critical communications.
