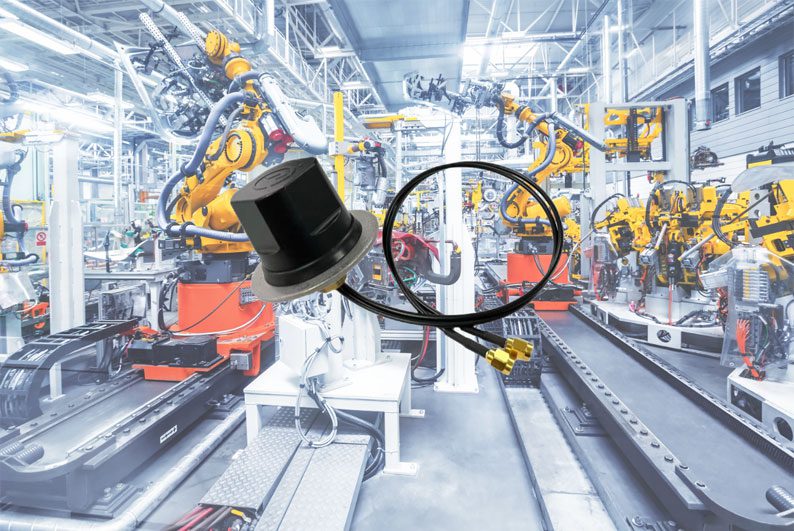

2×2 MiMo Ground Plane Independent Antenna for Wi-Fi 6E/7 Connectivity
YAGEO Group’s LPTNG2471M2DMG0457, a compact, ground-plane-independent 2×2 MiMo antenna that enables reliable Wi-Fi 6E and Wi-Fi 7 connectivity across wide frequency bands, even on metal enclosures, for rugged industrial and outdoor applications.
YAGEO Group’s LPTNG2471M2DMG0457 low profile, ground-plane-independent 2×2 MiMo antenna is engineered to deliver reliable WiFi 6E and WiFi 7 performance across the 2.4 GHz and 5-7.125 GHz bands. Designed for stable operation on both metallic and non-metallic surfaces, the antenna eliminates the need for a traditional ground plane.
Engineered for outdoor and industrial environments, the LPTNG2471M2DMG0457 features an IP67-rated, UV stabilized radome and a UL94-V0 flame rating. Its compact Ø45.50 mm footprint and 34.5 mm installed height support space-constrained installations, while dual SMA-male connectors with two 457 mm (1.5 ft) RG316 cables enable direct connection to 2×2 MiMo radios, routers, and gateways.
Key Features
- 2×2 MiMo Wi-Fi 6E / Wi-Fi 7 coverage across 2400–2500 MHz and 4900–7125 MHz
- Ground-plane-independent operation using integrated mounting washer
- Stable electrical and radiation performance on metallic and non-metallic enclosures
- IP67 ingress protection and UL94-V0 flame rated, UV stabilized housing
- Compact low-profile design: Ø45.50 mm x 50.92 mm, 34.5 mm installed height
- Dual SMA-male connectors with two 457 mm (1.5 ft) RG316 cables • Cable length and connector options available upon request
Target Applications
- IoT gateways and edge devices
- Enterprise access points and routers
- Smart city infrastructure
- Smart utilities and metering systems
- Industrial automation and control panels
- Remote monitoring equipment
- Remote vending and payment terminals
Quick Facts
- MiMo coverage: 2400–2500 MHz and 4900–7125 MHz
- Ground plane independent design
- IP67 & UL94-V0 rated for outdoor and harsh environments
Features
- Rugged Environmental Construction: IP67 ingress protection and UL94-V0 flame rated radome for industrial reliability.
- High Radiation Efficiency: Up to 80% efficiency at 2.4 GHz and 64% across 5–7 GHz bands.
- Ground-Plane-Independent Architecture: Performs reliably on metallic and non-metallic surfaces using an integrated mounting washer.
Customer Value
- Simplifies antenna integration by removing ground-plane constraints
- Reduces design risk for plastic, fiberglass, and composite enclosures
- Supports current and future Wi-Fi standards
- Custom cable lengths and connector options available to match system requirements
Target Applications
- IoT gateways and edge devices
- Smart city infrastructure
- Smart utilities and metering systems
- Industrial automation and control panels
- Remote monitoring equipment
- Remote vending and payment terminals
- Non-metallic utility boxes and kiosks
Market Advantages
- Ground plane independent operation differentiates it from standard WiFi monopoles
- Covers full WiFi 6E and Wi-Fi 7 spectrum up to 7.125 GHz in a single antenna
- Designed for reliable performance on both metallic and non-metallic enclosures
- Combines industrial-grade protection with compact form factor
- Reduces dependency on enclosure material for consistent RF behavior
